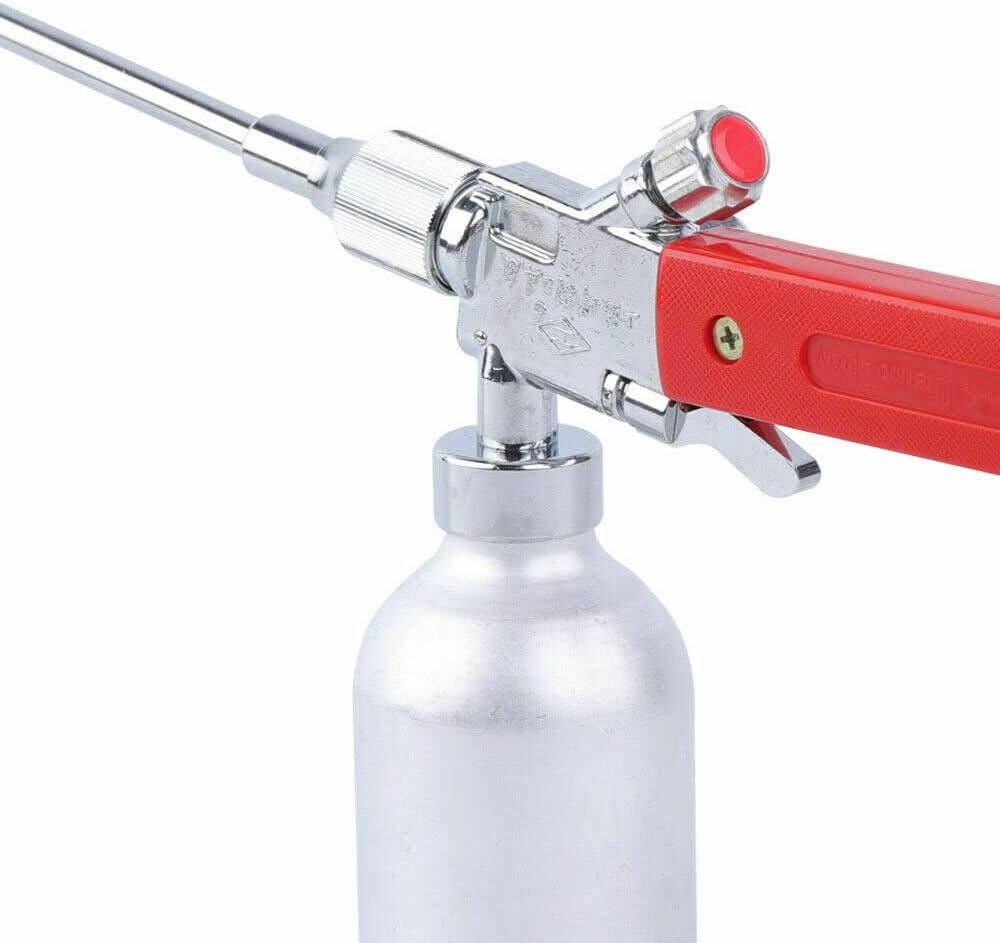

DNYSYSJ Metal Spray Gun Spray Welding Torch QH-1/h - Oxygen Acetylene Flame Welding Gun 430mm

Product specifications: Model:Q-1/H Nozzle Diameter: 3pcs (0.9 /1.1/1.3) Power Velocity: 0.4-0.6/0.6-0.8/0.8-1.0 Length: 430mm Gas type: O2, C2H2 (acetylene) The package includes: 3 x Welding nozzle 1 x The connecting nuts 1 x bucket seat 1 x hopper 1 x Control feeder 1 x pressing hand 1 x Oxygen joint 1 x The acetylene joint

• ★ Different alloy can be used to obtain different properties of wear-resistant and corrosion-resistant layers. Heat the acetylene flame on the workpiece to 300-400 degrees Celsius.
• ★ Due to the uneven particle size, or becoming wet, the valve switch is invalidated and blocked, and should be repaired in time. If it is used again, dry must be used.
• ★ Clean the spray gun regularly to avoid obstruction of the air tube hole. When cleaning the tube hole, pop up and clean the feeder.
• ★ The distance between the nozzle and the workpiece surface is 120~150 mm. At the same time, the self-fluxing alloy can be evenly sprayed on the surface of the workpiece, and then melted by the flame to appear on the surface mirror surface, gradually moving the melting position, so that the alloy and the workpiece are polarized and dispersed. Forming an adhesive layer
